Bitty Blank Dimensions

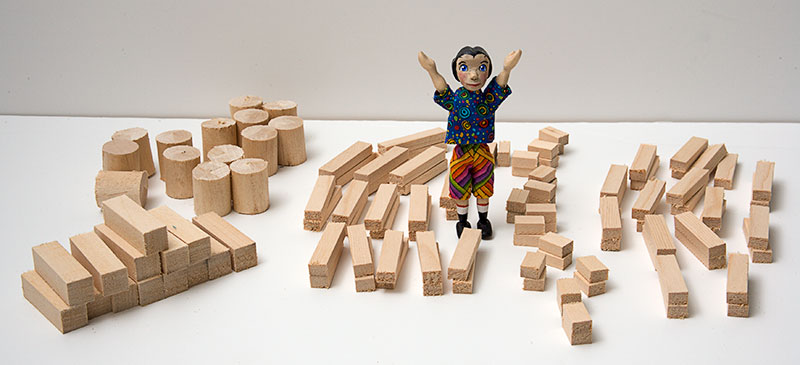

Tessa with bitty bits
Part Stock Dimension
Head 3/4" to 1" dowel 1" long
Torso 1/2" square 1 3/4" long
Legs 1/4 x 3/8" 1 1/2" long
Feet 1/4 x 3/8" 5/8" long
Arms 1/4 x 3/8" 1 3/4" long
Neck peg bamboo skewer 1/2" long, trim as needed
Ankle pegs toothpicks 1/2" long, cut off on foot bottom

The torso has a neck hole in top center, a shoulder hole 3/8" down from the top, and a hip hole 5mm up from the bottom.

Each arm and leg has a hole 4mm from the top.

Each leg has a hole in the center of the bottom, and each foot has a hole 4mm from the heel.

Arms can be beveled on the top inside to help hands clear the hips.

Head blank has a cheek and nose shelf (see pictures.) The shelf is 2mm deep, and tapers up at a slight angle to the top of the head.
