Boojum Under Construction
Update: 13 October 1999

Pilothouse, steering, foredeck

Click here for more construction photos

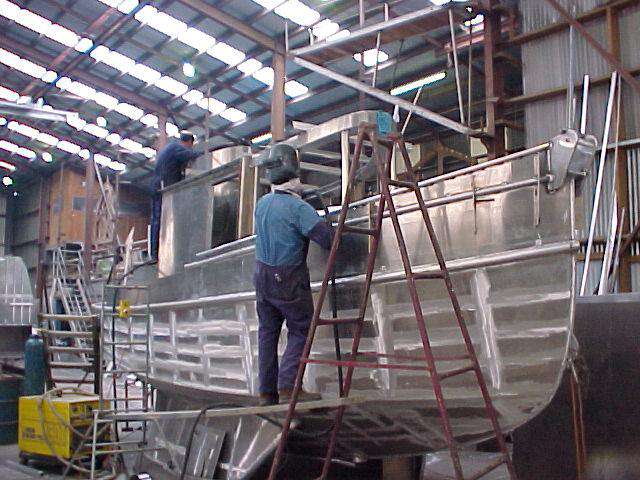

Above: Adding bulwarks and bow roller to the foredeck

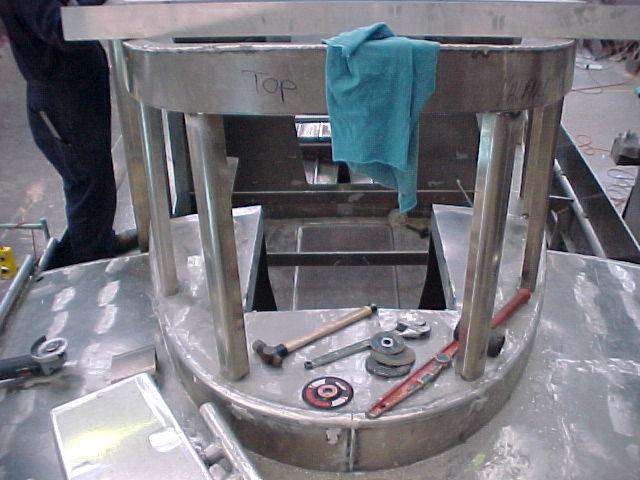

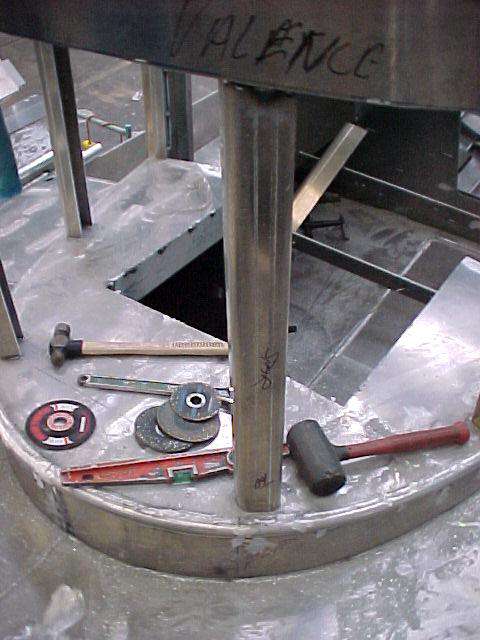

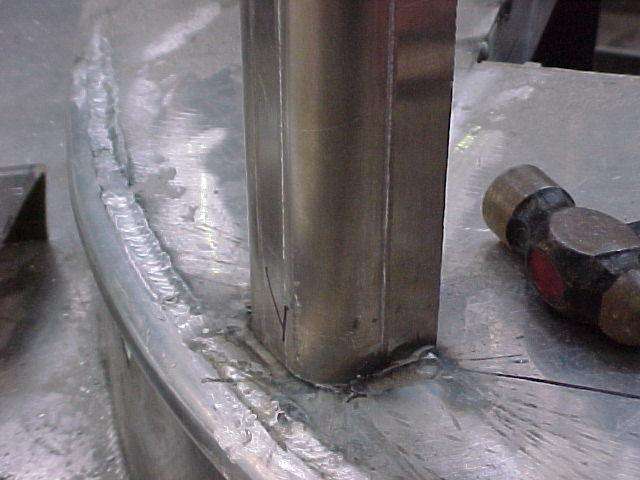

Right & Left: Details of the pilothouse window mullions.

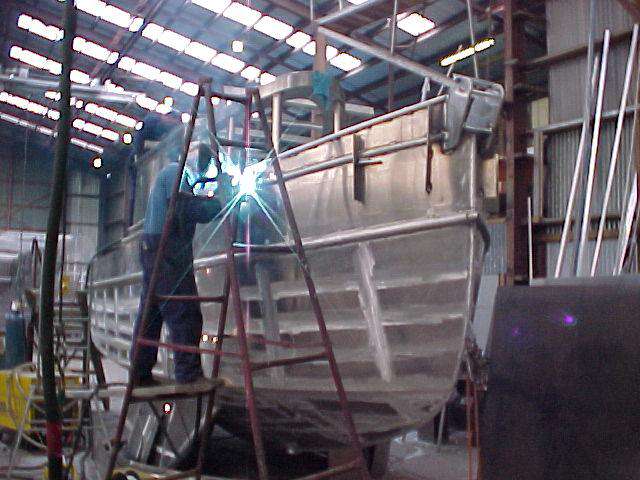

Below: Welding action shot!



Click on thumbnails for a closer look.
Steering Gear

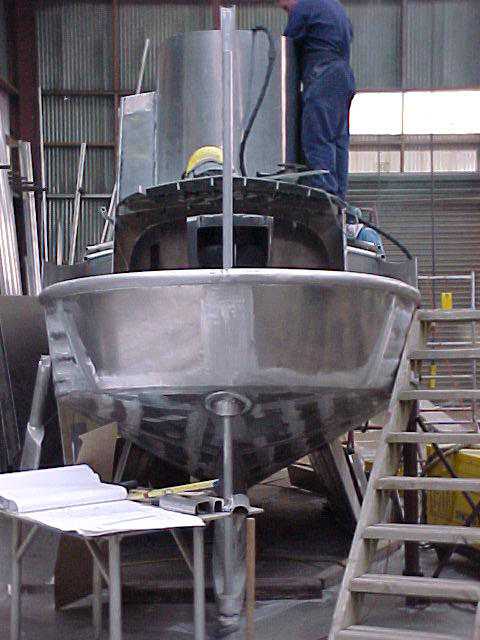

Left: Aft view, showing rudder tube and rudder (leaning against the starboard side of the hull.)

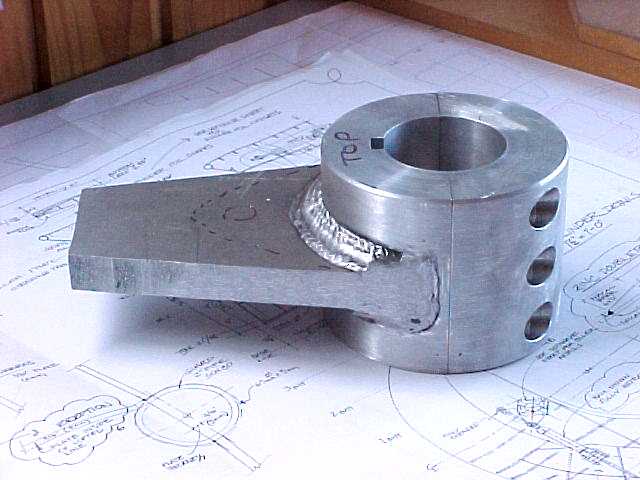

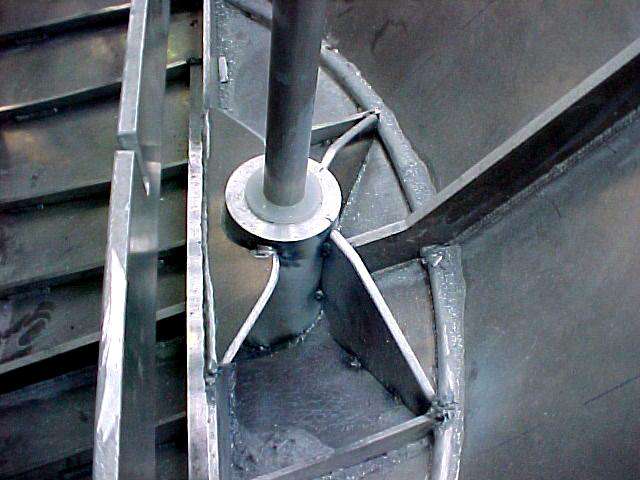

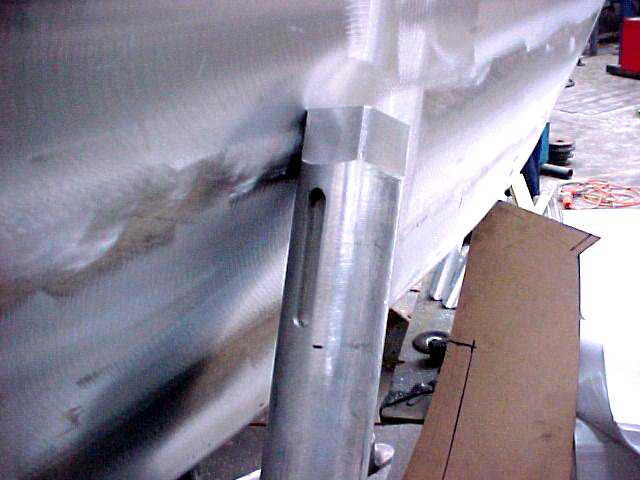

Above: Steering gear. Top: rudder tube inside end. Middle: tiller arm. Bottom: rudder post with keyway for tiller and square top for emergency tiller. The rudder post is 3" in diameter.

Click on thumbnails for a closer look.
Foredeck and anchor roller

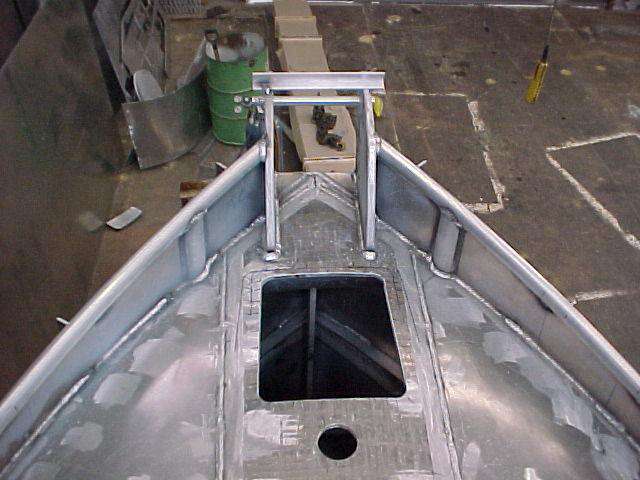

Above: Foredeck with anchor roller (inboard section.) Large hole is for anchor windlass box, small hole is dorade vent entrance.
