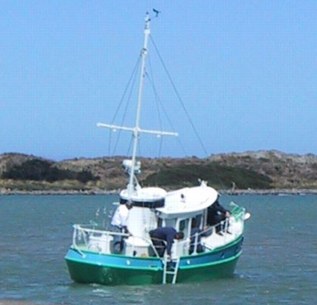

Boojum 25 Construction Photos! Flash: Pictures of Boojum's cruise from Seattle to Victoria! 01 October 2001 - Boojum Underway Comments by designer Michael Kasten Article in the Wanganui Chronicle

An aluminum trawler yacht designed as a compact yet rugged and seaworthy vessel for exploring rivers, canals, lakes and the oceans of the world. Powered by a Sabb 2JHVP 30 hp diesel engine with controllable pitch propeller, Boojum is trailerable, yet capable of crossing any ocean. Note the 3 keels which offer great roll reduction, provide lift for windward sailing, and act as a tripod allowing the boat to dry out or travel the roads on a flatbed. The rig is designed for singlehanded raising and lowering.

Dimensions LOA 25' 0" DWL 22' 9" Beam 8' 6" Draft 3' 9" Loaded Disp 18,500 Cruise D/L 646 Fuel 350 gal Water 60 gal Engine 30 hp PC 0.59

Estimated Range (15% reserve) kts S/L hp nm 3.5 0.73 2.4 5,400 4.0 0.84 3.5 4,600 4.5 0.94 5.3 3,700 5.0 1.05 8.0 2,900 5.5 1.15 12.0 2,200 6.0 1.26 18.3 1,600 6.5 1.36 27.1 1,200

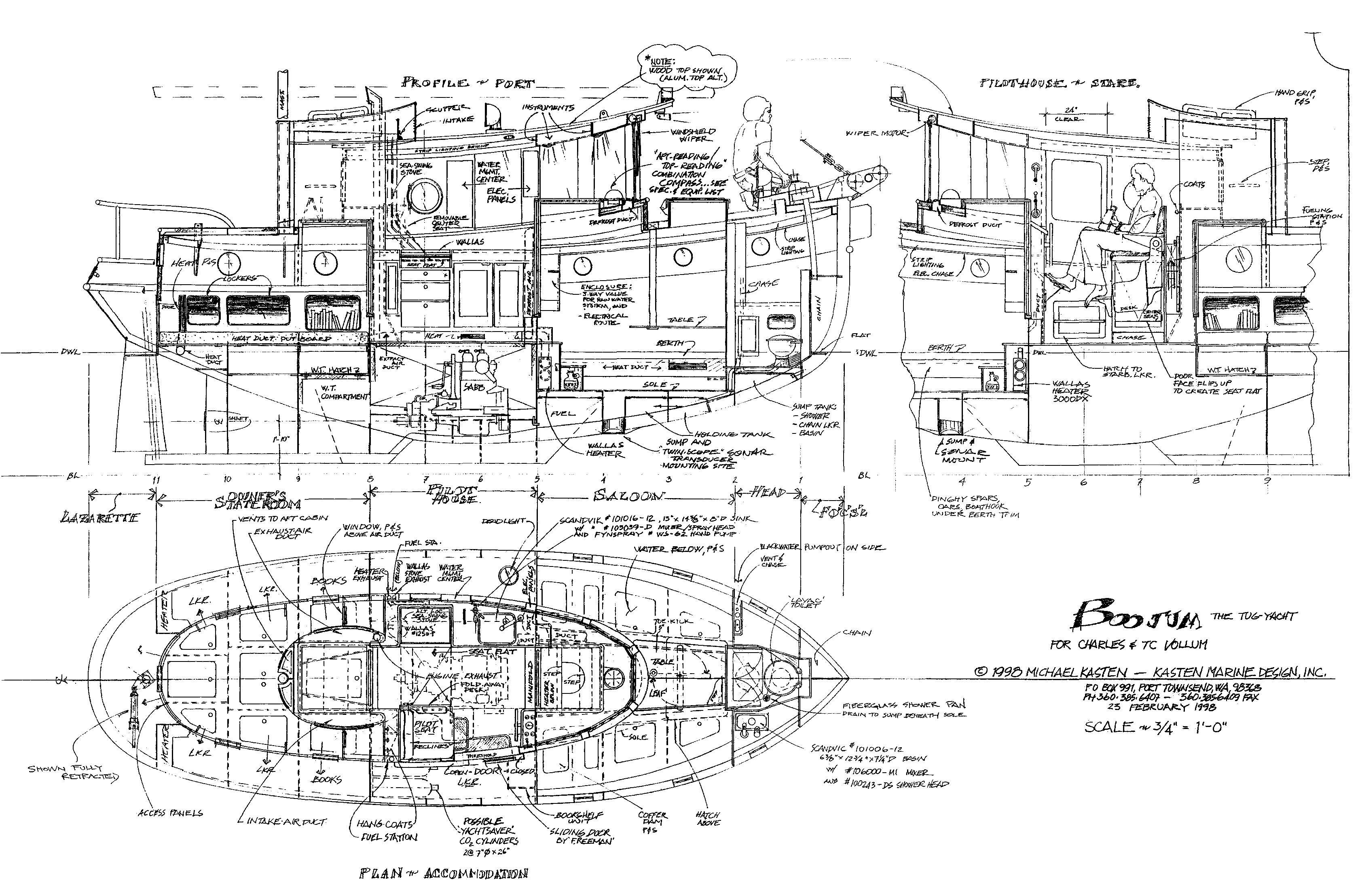

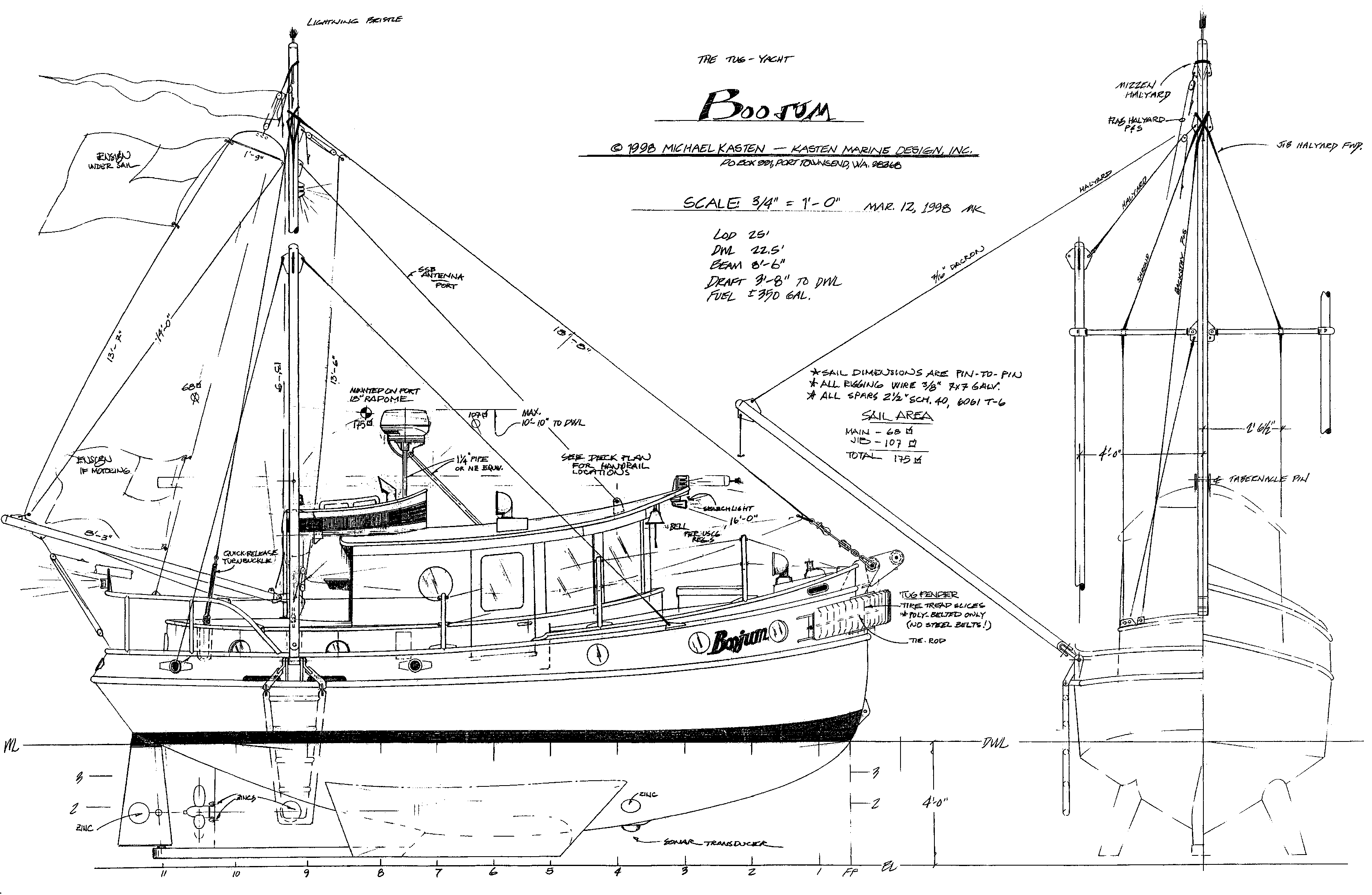

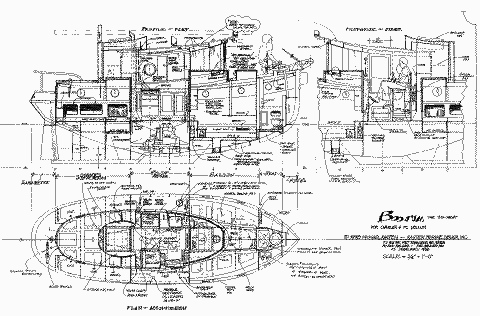

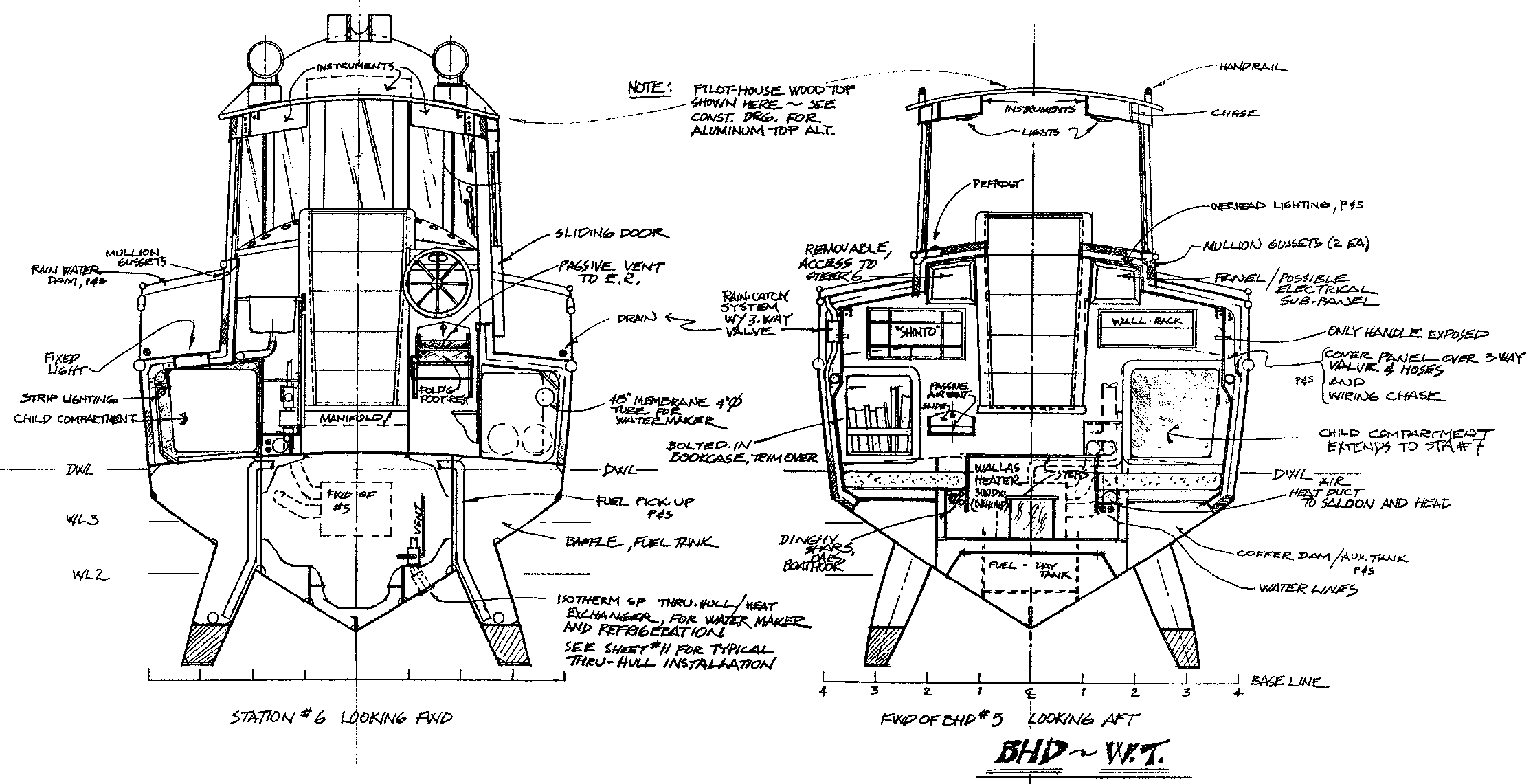

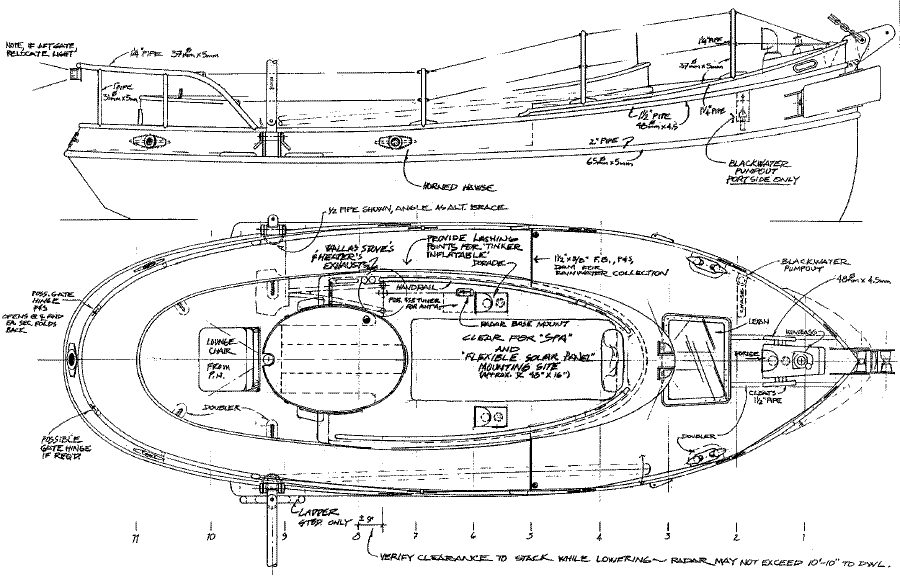

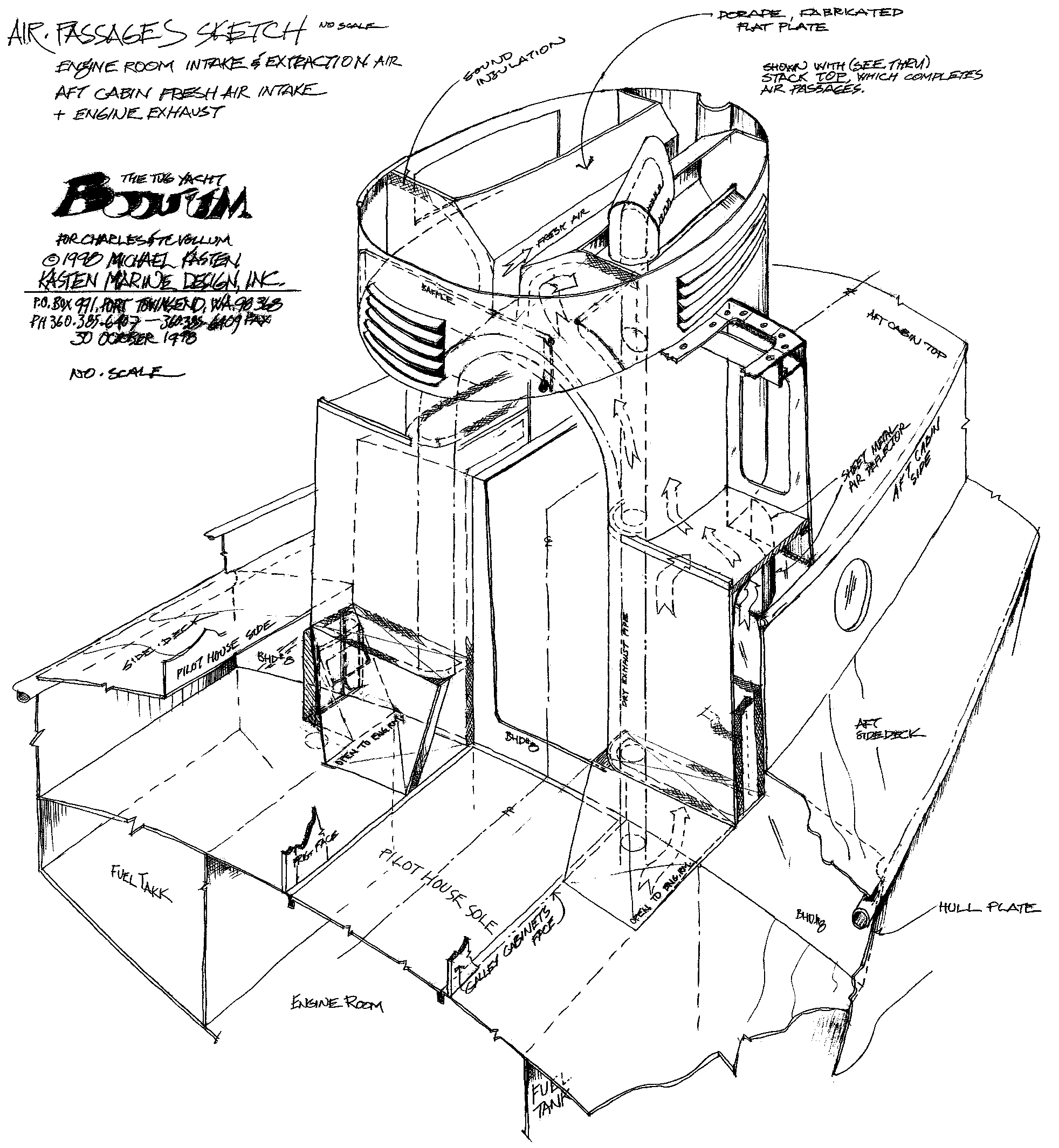

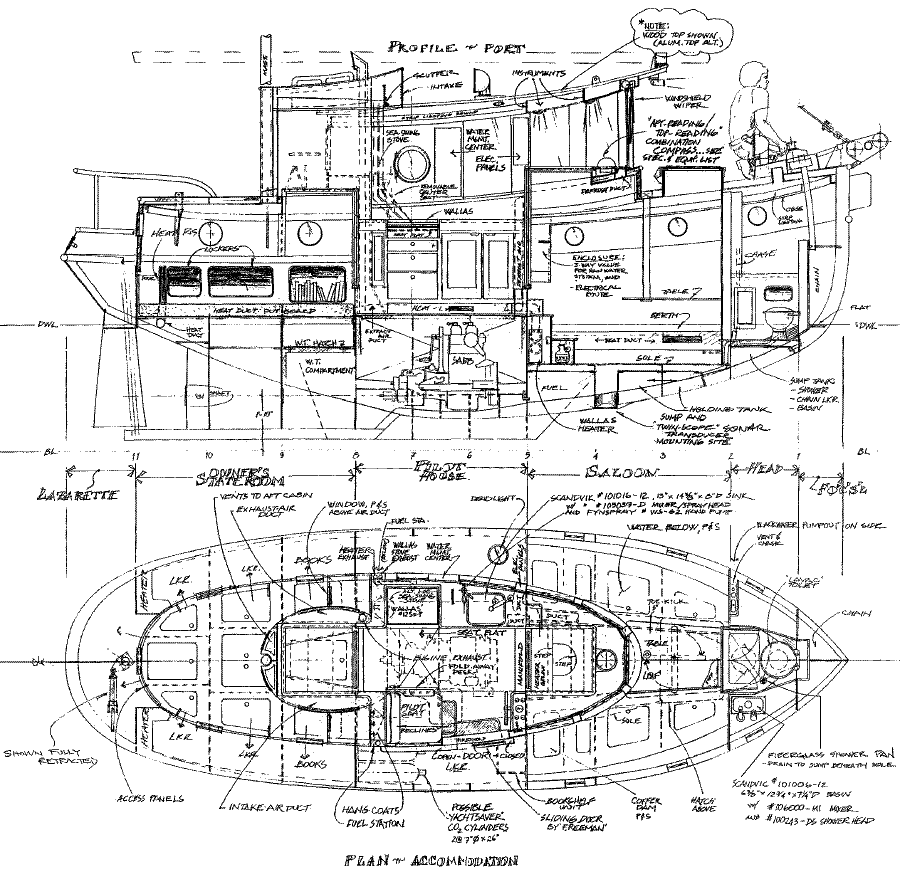

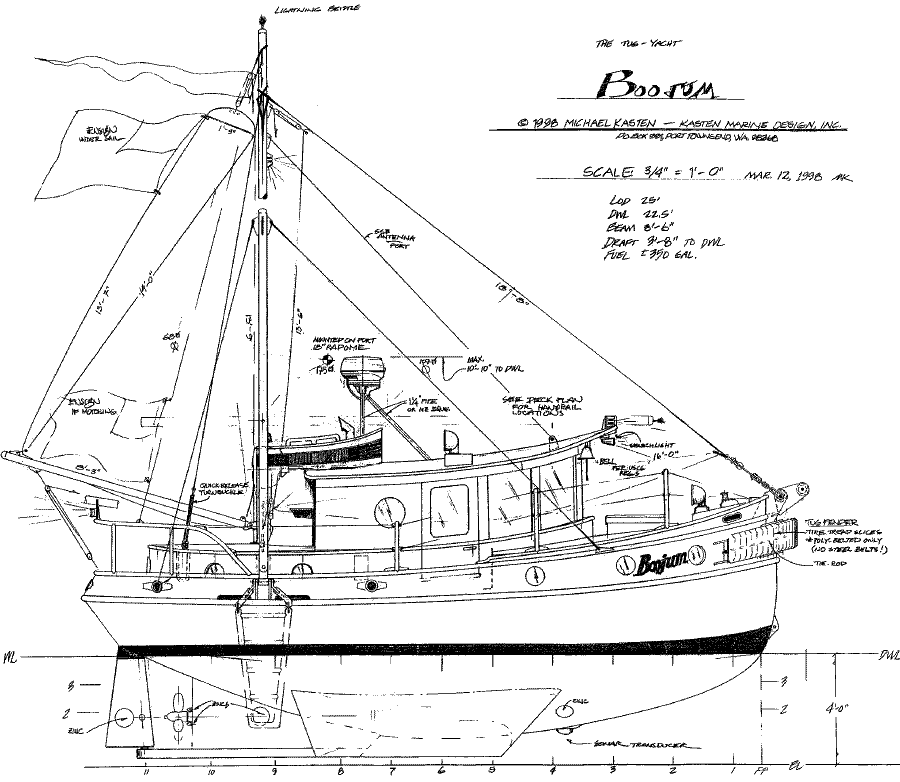

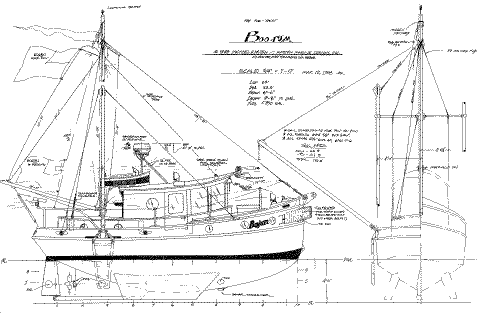

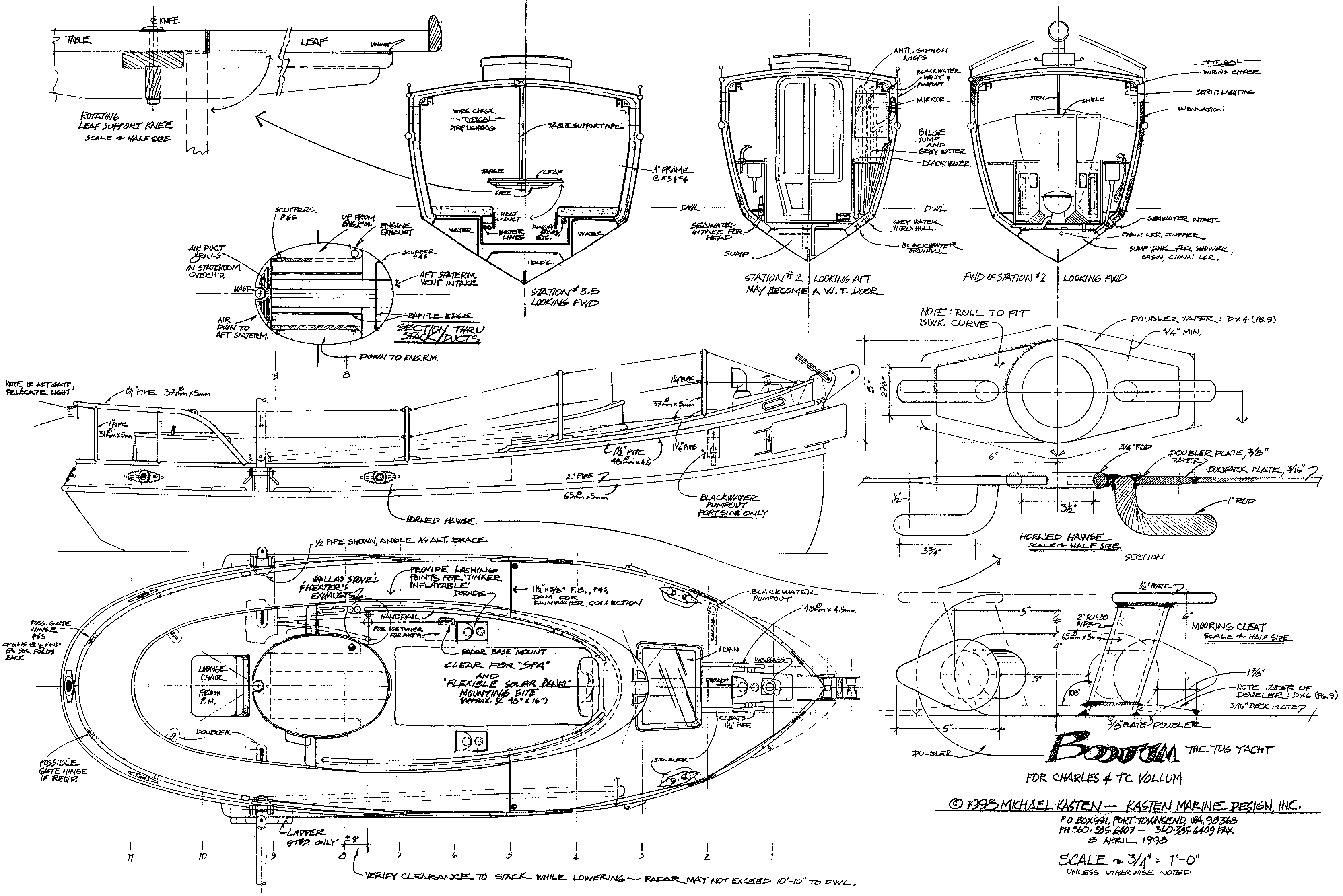

Click on images below for more detail, or download high res verions of the exterior (240k), interior (368k), deck plan (304k), section (128k) and stack perspective (116k) drawings.

Copyright 1998, 1999 by Michael Kasten All drawings and specifications are preliminary
